Lateral drain cutting is a relatively new drain technology using remotely controlled and robotic grinders and cutters to remove total and partial blockages from the drainage system without having to excavate and disrupt the pipe and sewer system. A large CCTV colour display and precision robotic controls even allows us to cut around bends.
Start Now for Free!
Some applications our Lateral Drain Cutter is useful for:
| Application area | - House connection |
| Nominal size | - Can be used from DN 80 to DN 250 |
| Components | - Milling drive, cable drum and cable remote control |
| Engine | - air-powered milling motor |

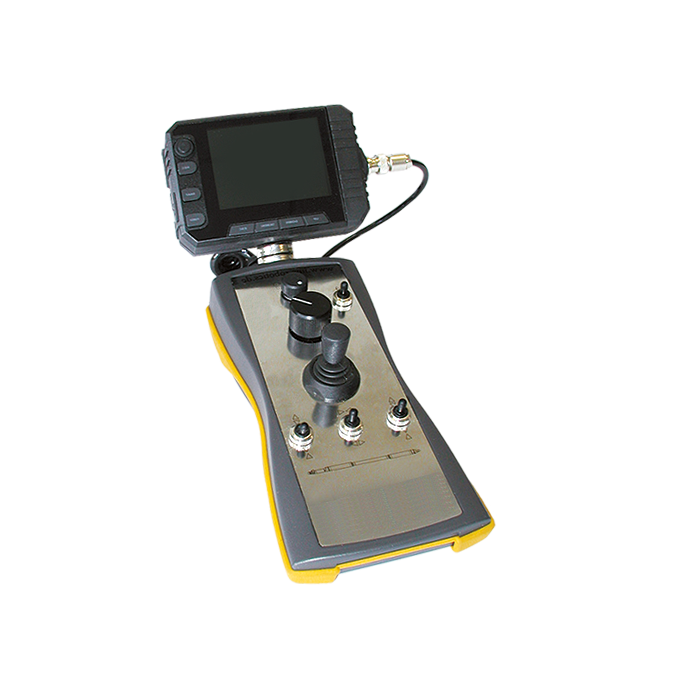

| Control | - Cable remote control with joystick |
| Cable length | - 30m cable lengthk |

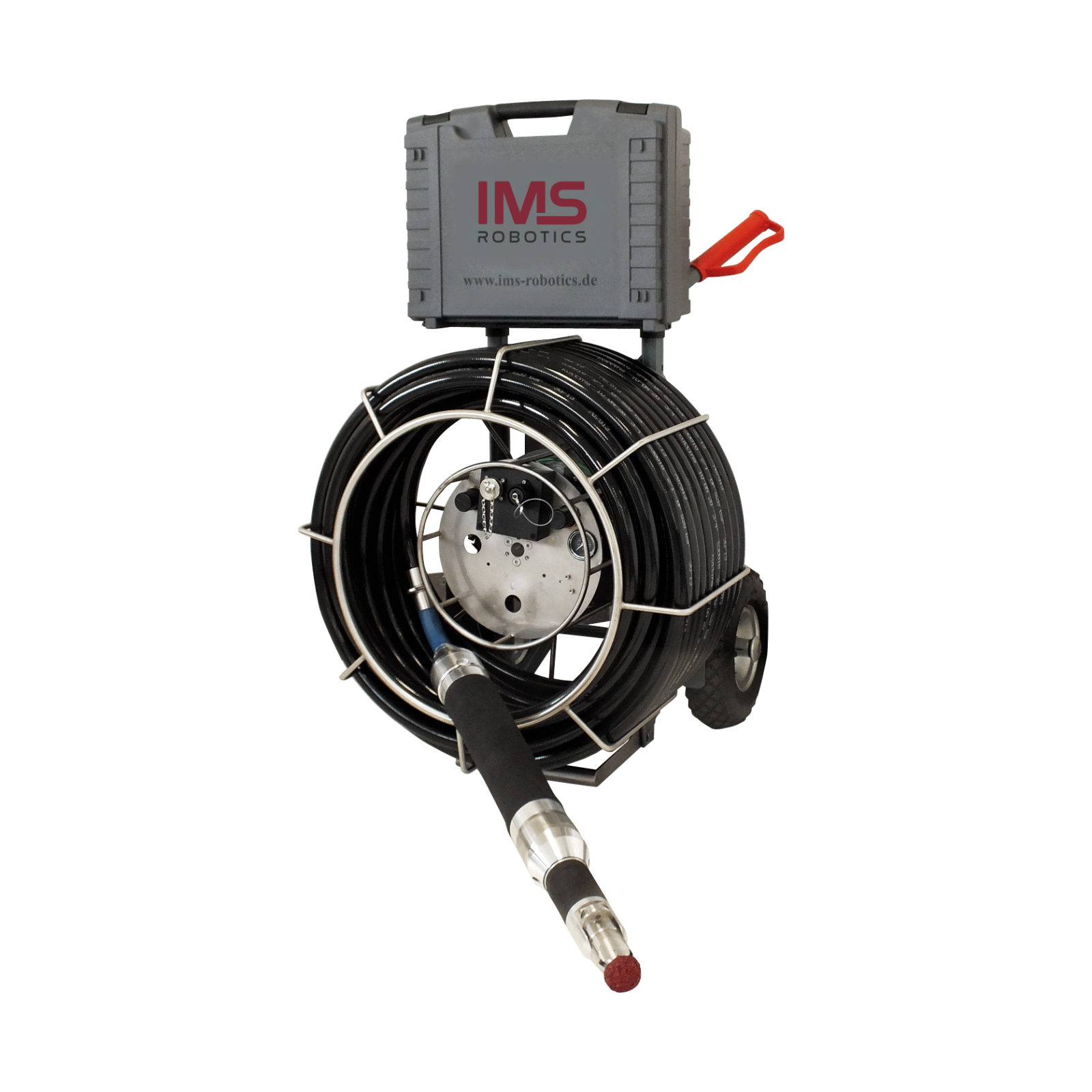

| Cable drum | - Cable drum with pneumatic rotary feed-through |
| Equipment / special features | - Bendability 90 ° from DN 100, (stoneware, lined pipes without folds or similar) - Coupling parts for push rod - 400 ° rotation and approx. 90 ° swivel movement with stops - 3.5 inch monitor - accessories |
| Camera | - Colour camera with LED lighting |
| Outside diameter milling drive | - 72 mm |
| Weight | - approx. 47 kg |
